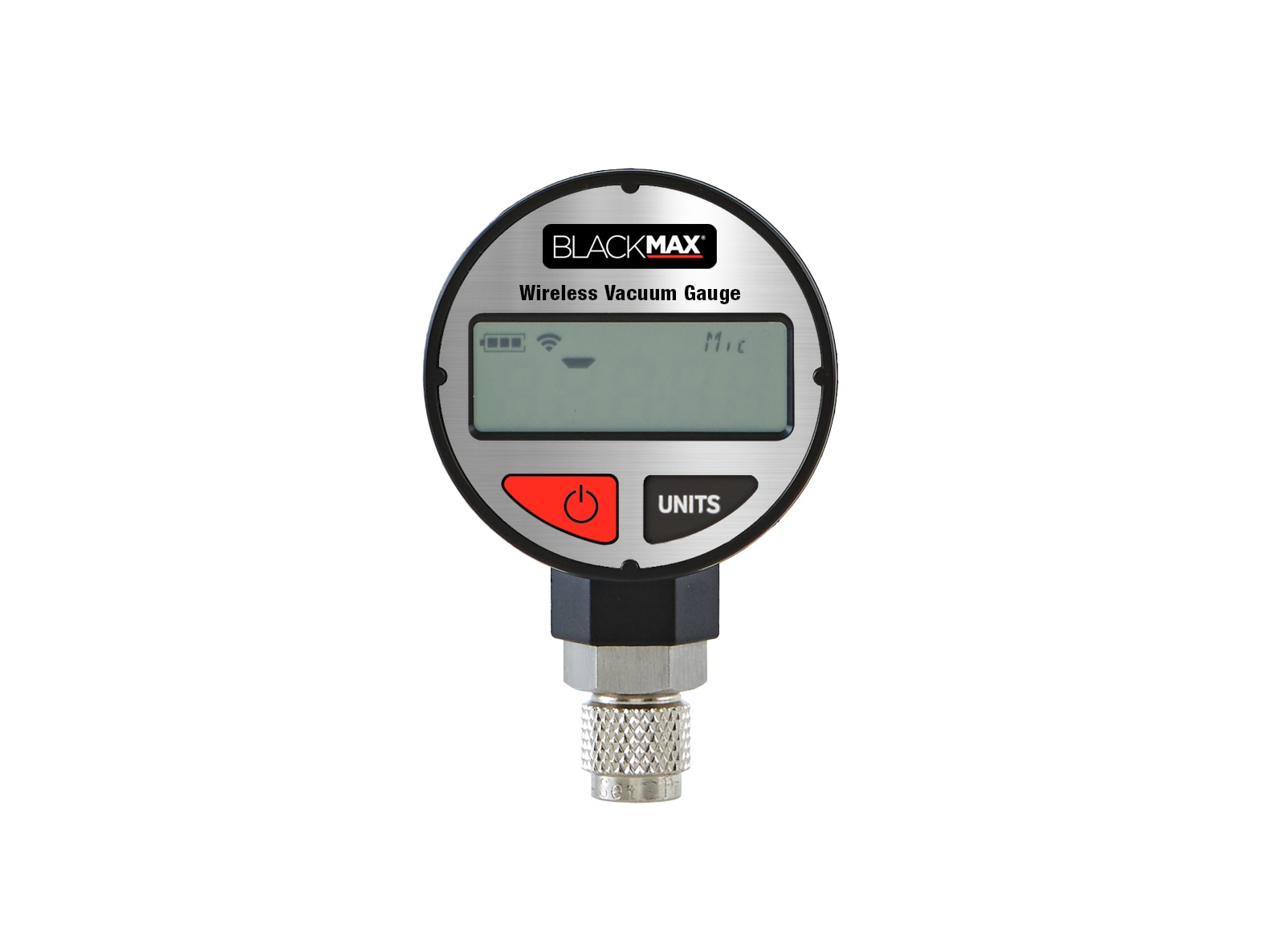

BVG215A | BlackMax® Wireless Vacuum Gauge

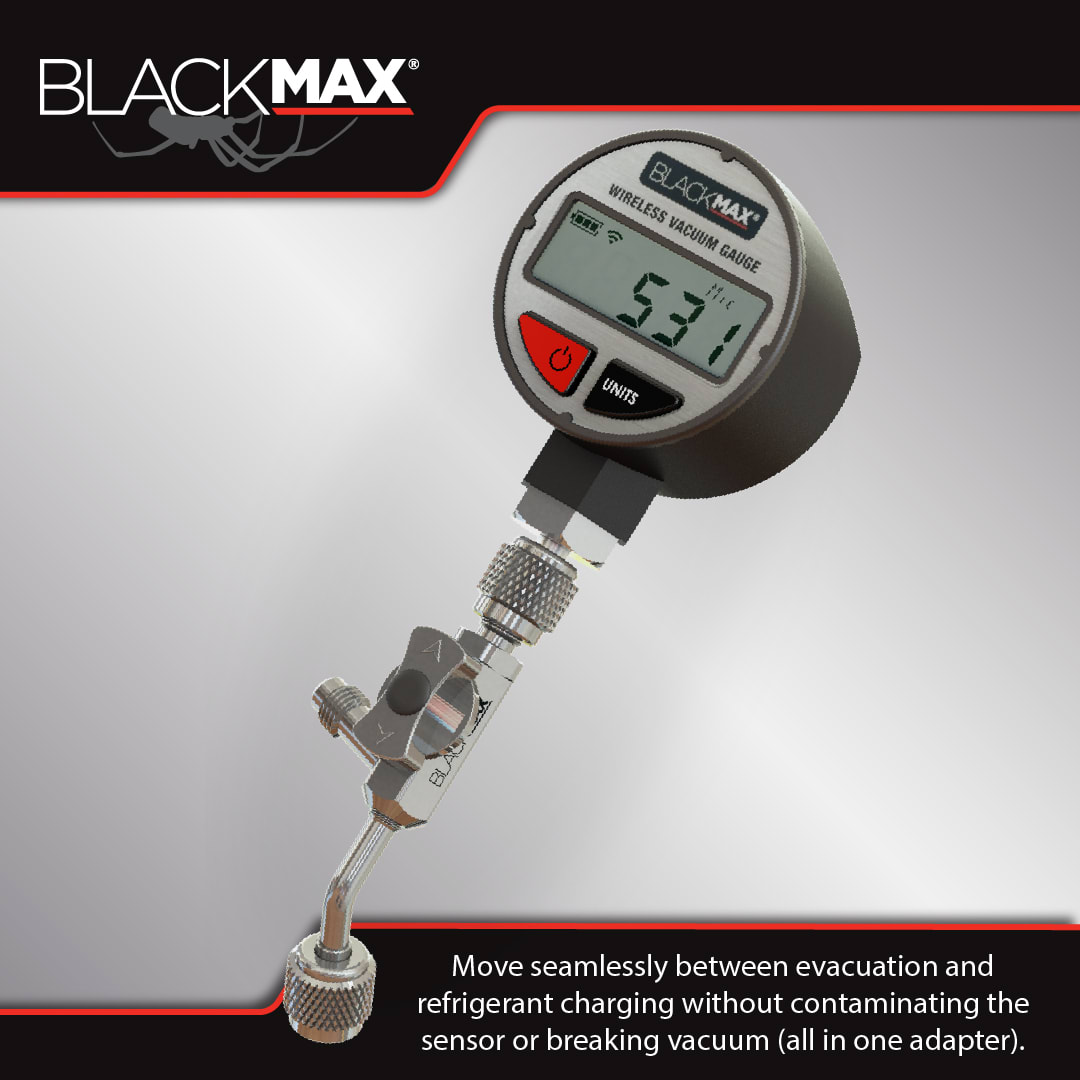

The BlackMax® BVG215 Wireless Vacuum Gauge brings high-resolution evacuation measurement and verification to the jobsite. The gauge can be used in 3 different ways, streaming live data directly to a Wireless Digital Manifold (200 series or later), connected to a wireless mobile device or read as a stand-alone instrument. Calibrated to NIST standards, the BVG215 delivers reliable accuracy across a wide operating range. It also features an innovative 3-in-1 Coupler that allows the technician to move seamlessly between vacuum testing and refrigerant charging without contaminating the sensor or breaking vacuum (all in one coupler). The result is a smoother evacuation process, clearer verification, and fewer workflow interruptions from start to finish.

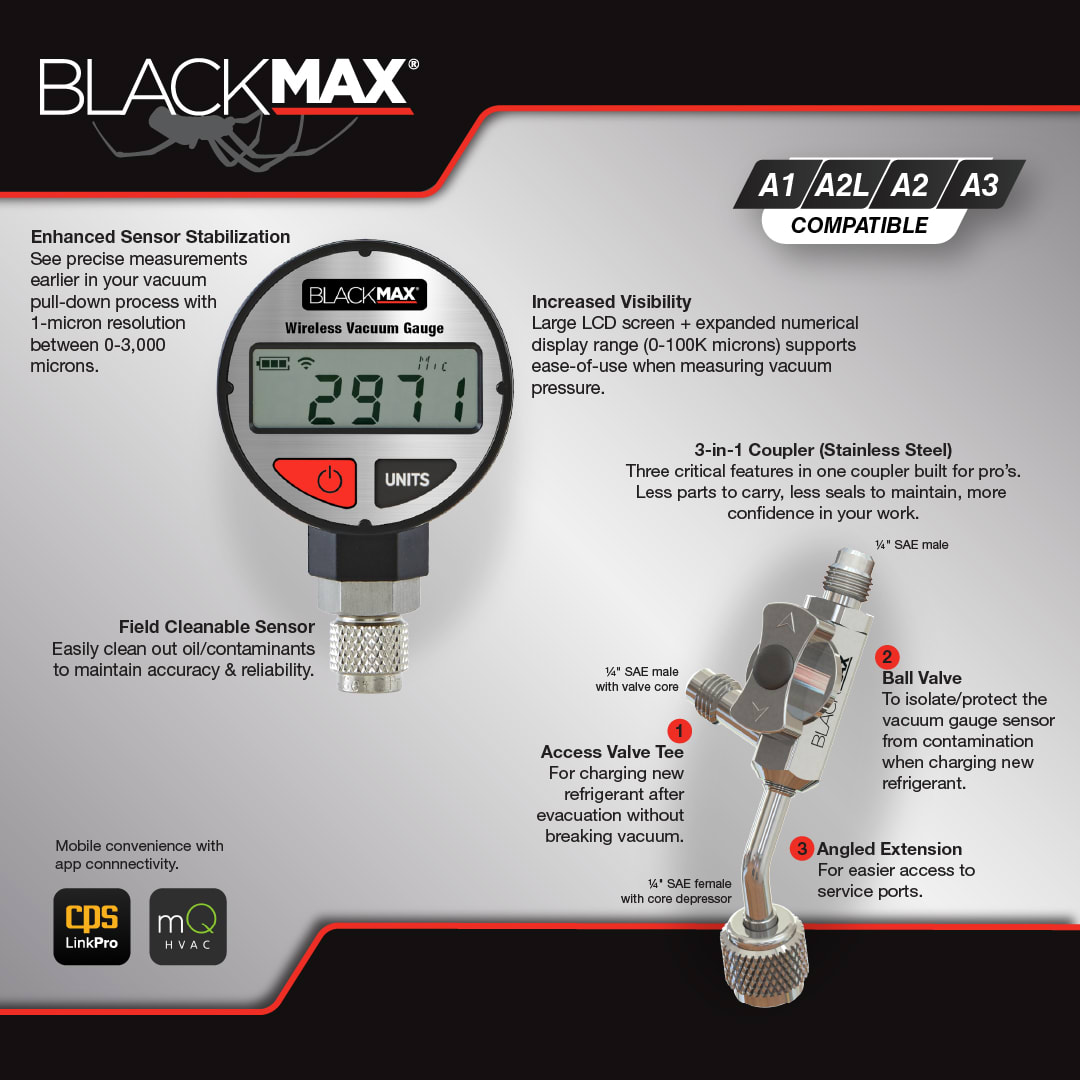

- Enhanced Sensor Stabilization: See precise measurements earlier in your vacuum pull-down process with 1-micron resolution between 0-3,000 microns.
- Increased Visibility: Large LCD screen + expanded numerical display range (0-100K microns) support ease of use when measuring vacuum pressure.
- Accurate & reliable: Due to strict NIST calibration standards.
- Stainless Steel Components: Compatible with all refrigerant gases (even ammonia).

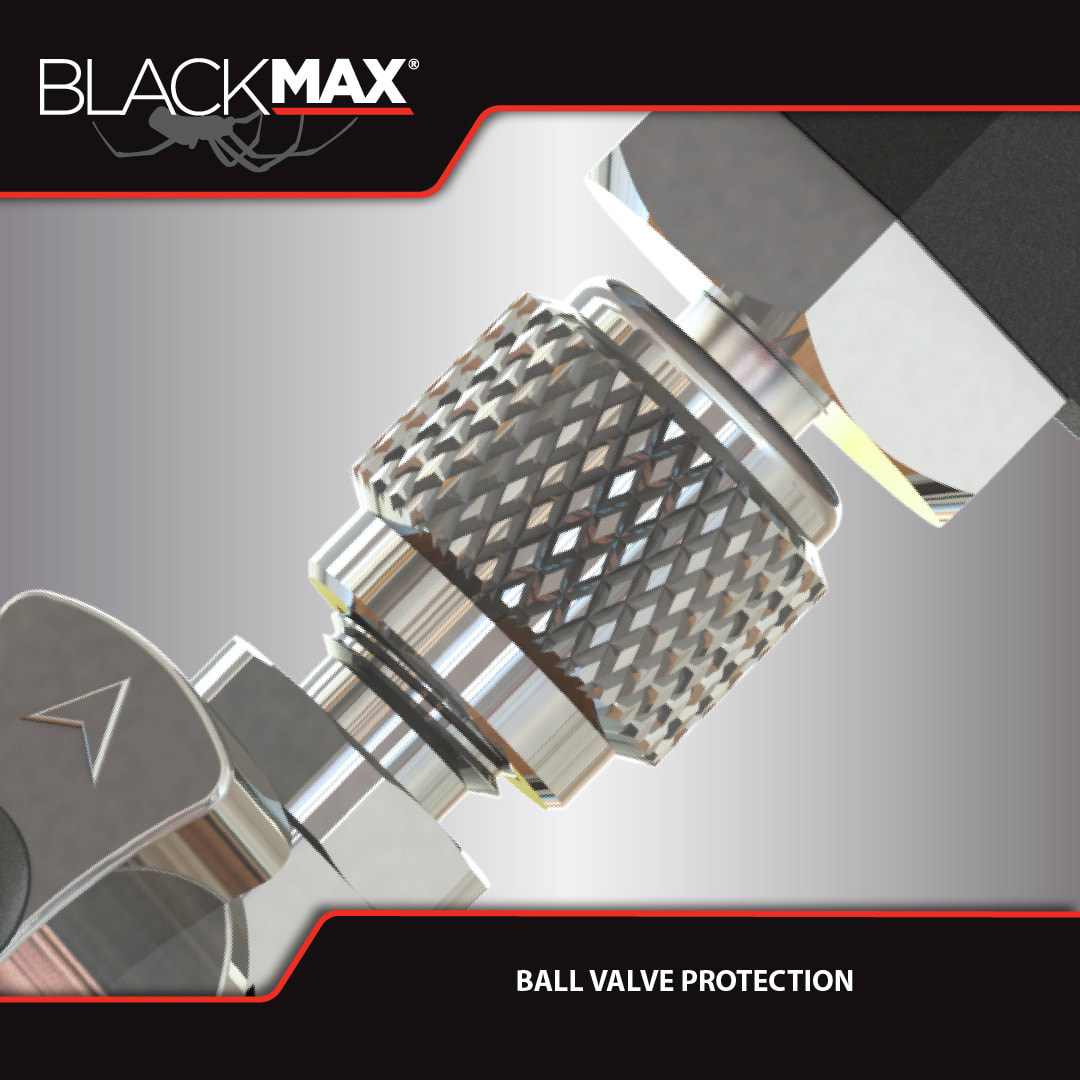

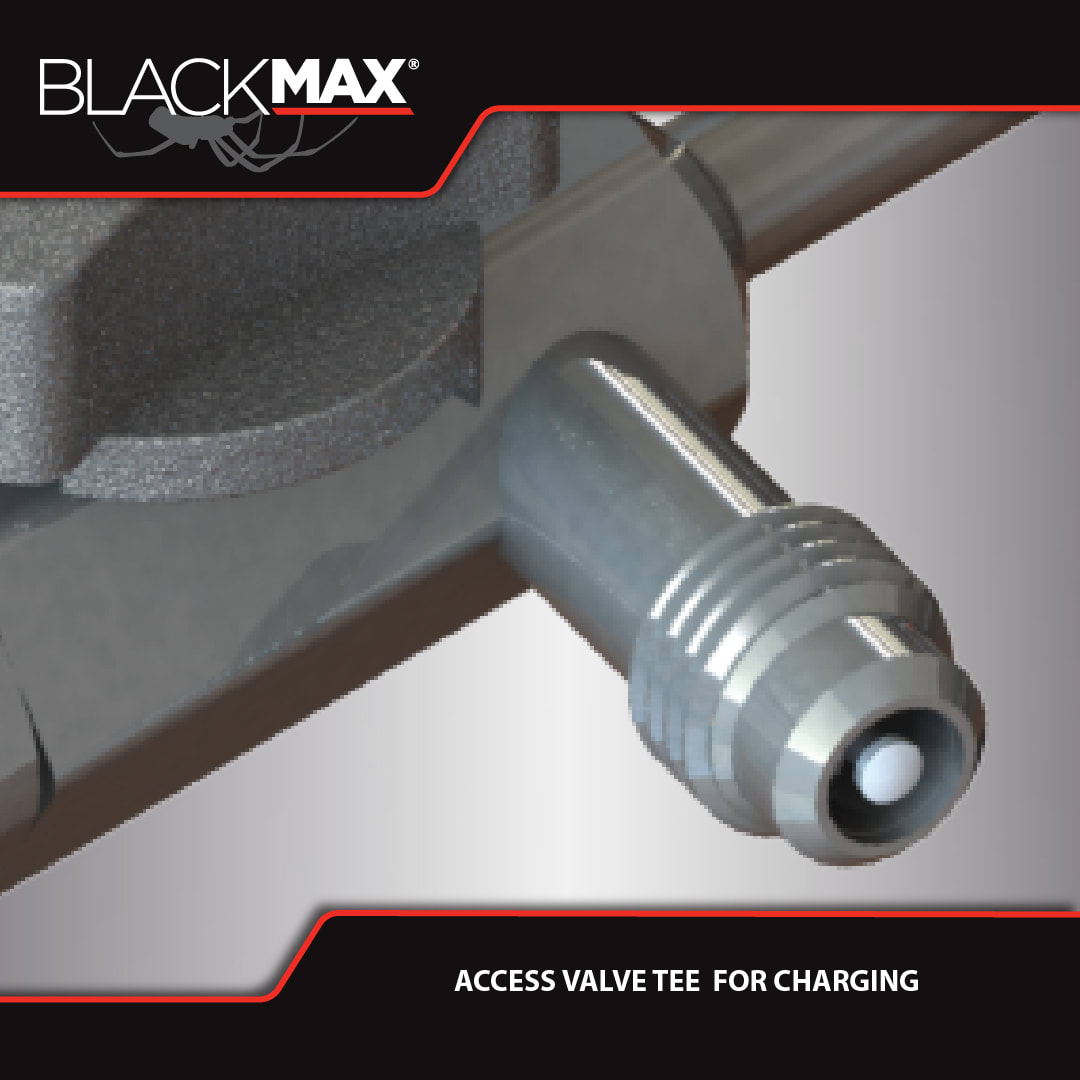

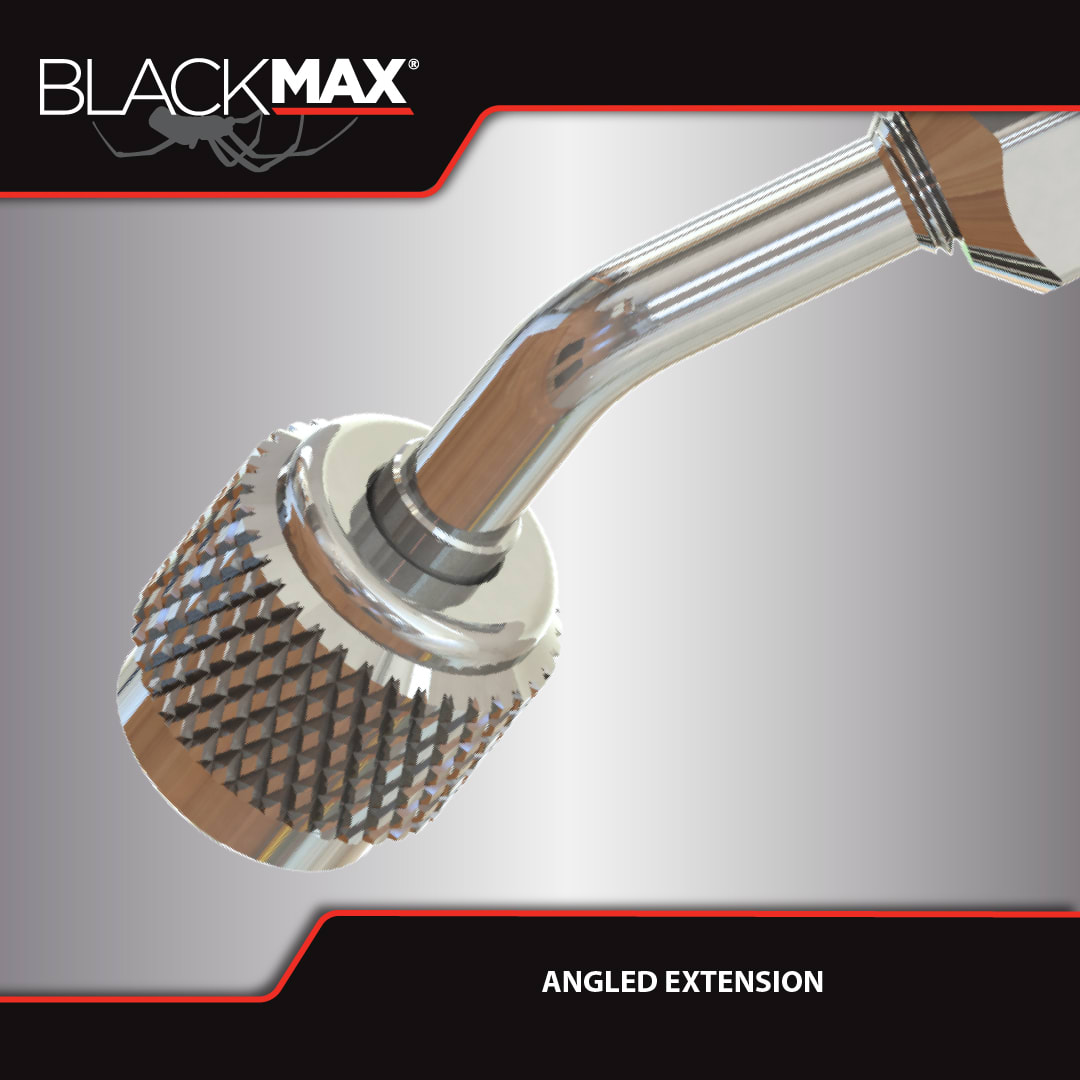

- Upgraded 3-in-1 Coupler: Three critical features in one coupler built for pro’s. Less parts to carry, less seals to maintain, more confidence in your work.
- Field Cleanable Sensor: Easily clean out oil/contaminants to maintain accuracy & reliability.
- Wireless Enabled: Connect to a mobile app or a digital manifold*.

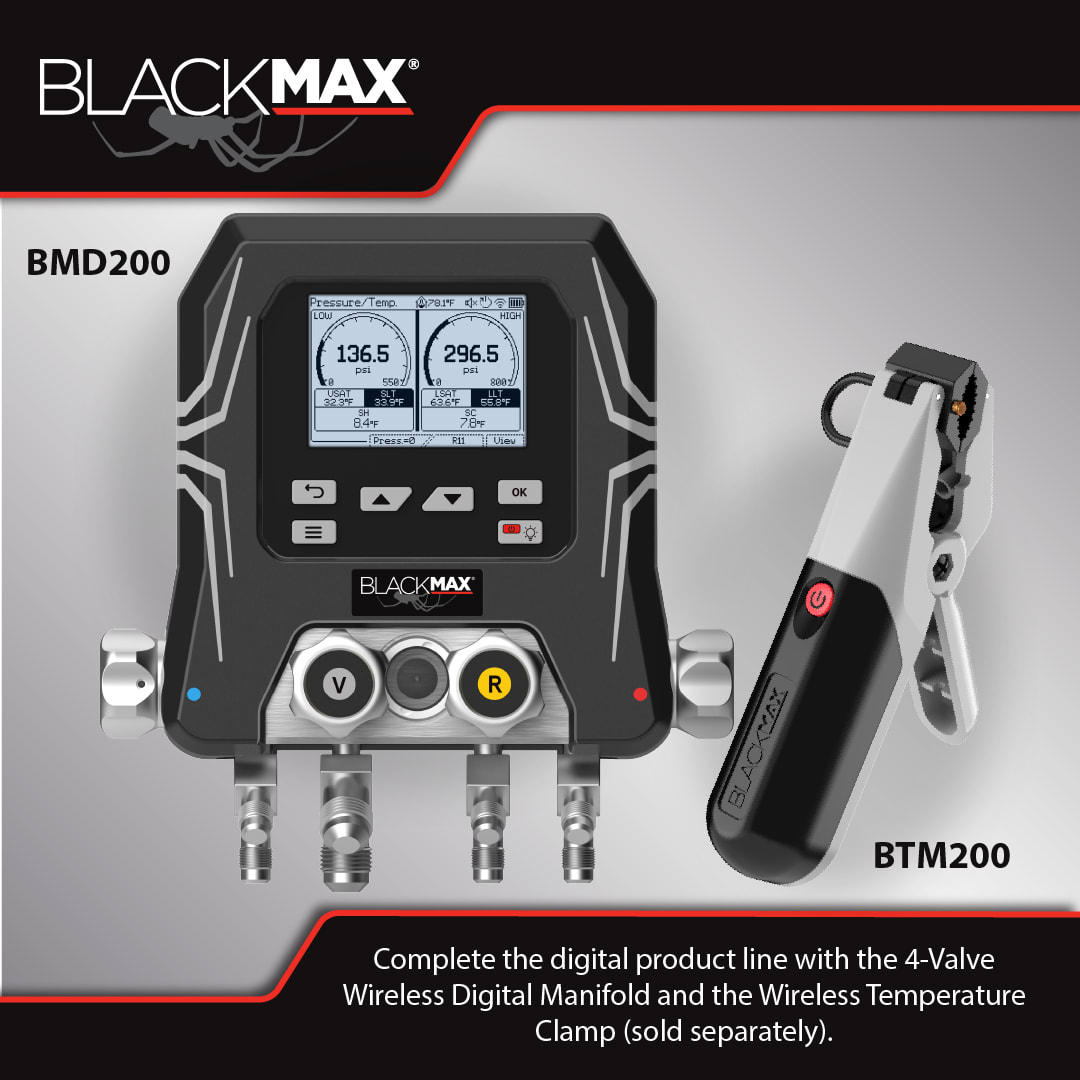

*Compatible with BlackMAX Wireless Digital Manifolds (200 series or later).
Find your nearest distributor to purchase yours today.
Specifications
- Sensor Type: Self-heated thermistor bridge with integral temperature compensation from 32°F to 122°F (0°C to 50°C)
- Accuracy: 10% of reading +/- 5 microns (0-2,000 microns)
- Operating Range: Atmosphere – 0 microns
- Pressure Rating: 450 PSIG MWP, 3000 PSIG Burst
- Operation Temperature Range: Compensated (accuracy as stated): 32°F to 122°F (0°C to 50°C), non-compensated (add +/- 0.5% error for every °C outside compensated range): -22°F to 158°F (-30°C to 70°C
- Operating and Storage Humidity: 0-95%, Non-condensing
- Storage Temperature: -40 to 185°F (-40°C to 85°C)
- Refrigerant Compatibility: All (including Ammonia) A1, A2L, A2 & A3 Compatible
- Wireless Range: Up to 325 ft.
- Battery: 9V Alkaline (up to 20 hours of runtime)
- Auto-Power Off: After 10 minutes of inactivity (length can be adjusted/disabled)
- Selectable Units:Microns, Millibar, In Hg, Torr
- Limited Warranty: 1 year
Resolution for numerical values
| Vacuum Pressure (microns) | 100,000 – 75,000 |
75,000 – 50,000 | 50,000 – 25,000 | 25,000 – 10,000 | 10,000 – 3,000 |
3,000 – 0 |
| Displayed Resolution (microns) | 2,000 | 1,000 | 500 | 100 | 50 | 1 |
Canada SKU: BVG215C
