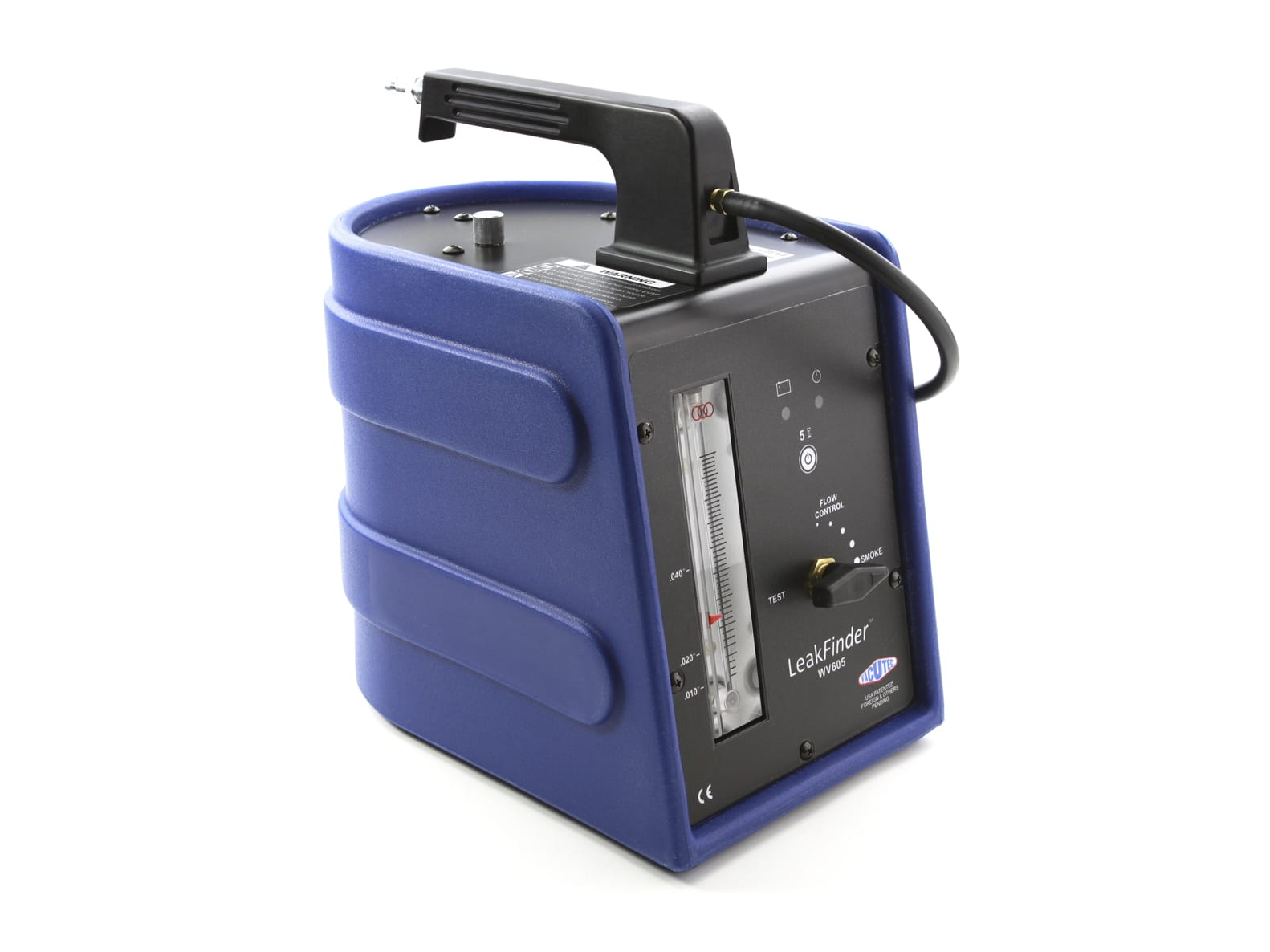

WV605 | Vacutec® Diagnostic Smoke® Machine
The Vacutec® WV605 Diagnostic Smoke® Machine is an advanced leak detection device for finding low-pressure leaks with smoke and UltraTraceUV®. The unit features a highly-accurate flow meter that measures leak size. OEM-approved.
Vacutec® Diagnostic Smoke® Machine
- Smaller, lightweight design
- 1-Year Warranty
- Test with or without smoke
- Smoke Volume Control
- Utilizes OEM-approved STAR Technology
- Can connect right to tire inflation nitrogen generator
- Patented UltraTraceUV® solution – the only OEM-approved dye
- Basic EVAP and general purpose applications
- Works with nitrogen or shop air to meet all OEM test requirements
- Full range flow meter covers all EVAP leak ranges: from .080″ down to .010″
- Includes two solution bottles, enough for about 1,000 cycle tests
- User refillable
Leaks found with Vacutec WV605
- EVAP
- Vacuum Leaks
- Exhaust Leaks
- EGR Leaks
- Under Dash Leaks
- Throttle Body Components
- Brake Booster Leaks
- Turbo and Supercharger
- Head Gasket Leaks
- Vacuum Subsystems
- Injector O-Ring Leaks
- Wind/Water Leaks
- Oil Leaks
- Air Injection Leaks
- MAP Sensor Leaks

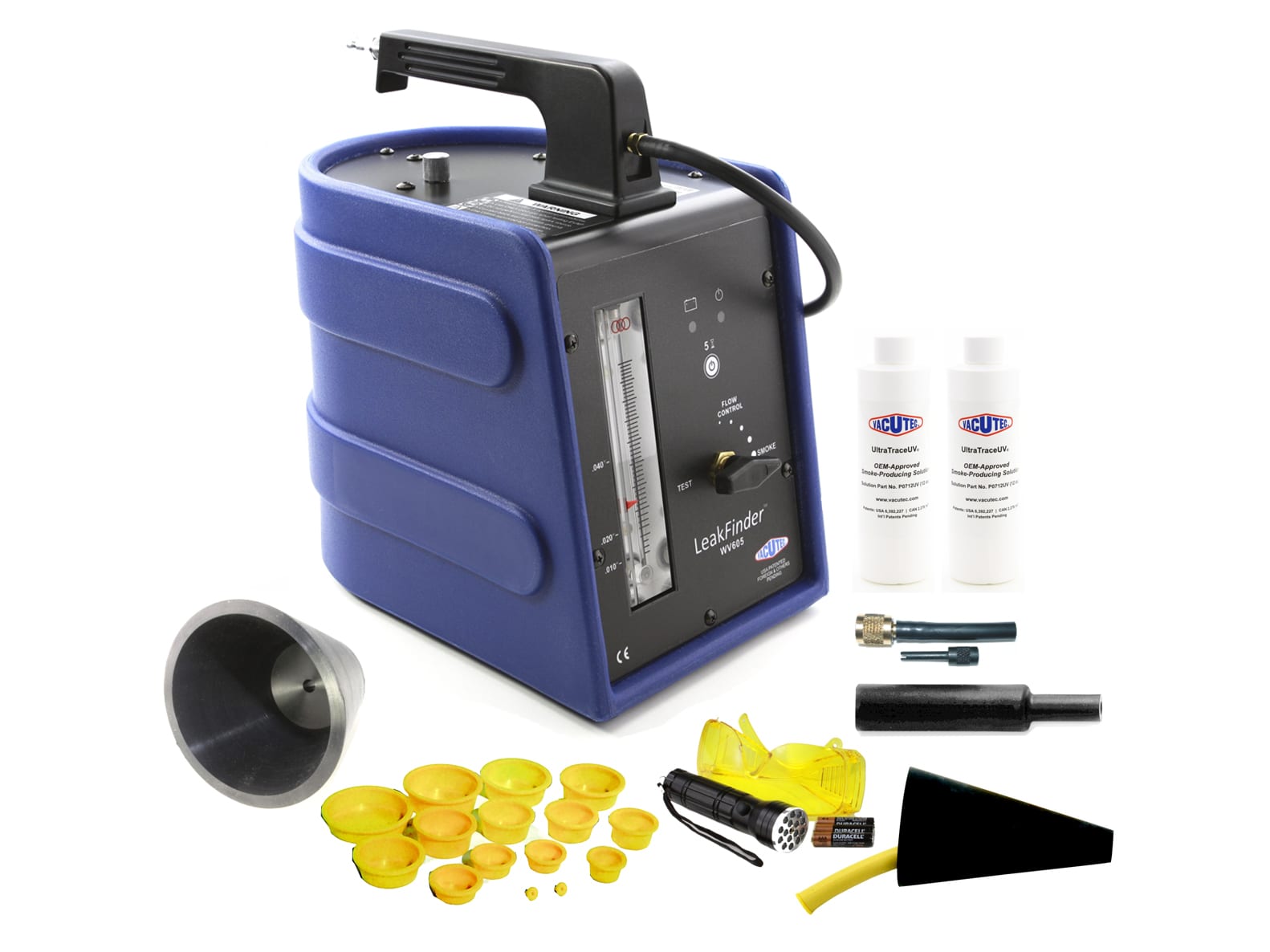

Vacutec WV605 Includes:
- 1-Year Warranty
- Full line of accessories
- OEM-Approved Technology
- UltraTraceUV® solution deposits florescent dye trace
Model | W605 |
Input | 12 volts DC |
Machine Specifications |
|
Height (less hanger) | 13.5 in. (34.3 cm) |
Width | 9 in. (22.9 cm) |
Depth | 13 in. (33.0 cm) |
Weight | 10.5 lb. (4.8 kg) |
Supply Pressure | 13.0 in. H2O (0.032 bar) |
Supply Volume | 10 liters per minute |
Power Supply | 12 volts DC |
Shipping Weight | 13.5 lb. (6.1 kg) |
New Fluid Capacity | |
Waste Tank Capacity | N/A |
Length of Power Cord | 8 feet (3m) |
Length of Hose | 8 feet (3m) |
Warranty | One Year |
| INCLUDED | |
| WVA-01 | Standard Adapter Cone: 1″ x 3.5″ & 6″ long /25.4 mm x 89 mm x 152 mm |
| WVA-067 | Large Adapter Cone:(Cone: 3.5″ x 6″ & 4.5″ long / 89 mm x 152 mm x 144 mm) |
| WVA-02 | Assorted Cap-plug Set |
| WVA-03 | Smoke Diffuser (for finding wind/water leaks) |
| WVA-041 | 25” Coiled Nitrogen Hose |
| WVA-093 | 400,000 CP Halogen Spot Lamp |
| WA-065 | Combo Light: White Light + Red Laser light for smoke| Ultraviolet (UV) light for fluorescent dye |
| WVA-066 | Focused-Beam UV Light with yellow glasses; 12VDC Adapter & 120VAC Charger included |
| WVA-096 | Bladder Plug, with through hole. Includes replacement bladder |
| WV0712UV | UltraTraceUV® Smoke Solution:12 oz. / 355 ml for Leakfinder Series |
| OPTIONAL ACCESSORIES | |
| WV0716UV | UltraTraceUV® Smoke Solution:16 oz. / 473 ml for all others |
| WV0712UV-12 | UltraTraceUV® Smoke Solution:12 oz. / 355 ml for Leakfinder Series-2 bottles |
| WV0716UV-16 | UltraTraceUV® Smoke Solution:16 oz. / 473 ml for all others-2 bottles |
| WV0716 | UltraTrace® Smoke Solution (16 oz.) – No UV |
| WV0716-12 | UltraTrace® Smoke Solution (16 oz.)-12-bottle case – No UV |
| WVA-098 | Replacement Bladder for WVA-096. |
| WVA-063 | Universal Adapter (Standard) |
| WVA-063-10 | Universal Adapter (Standard) – 10 units |
| WVA-064 | Universal Adapter (for BMW\MINI) |
| WVA-078 | Ford / GM Capless Double-Door Fuel Neck Adapter |
| WV-060 | Inert Gas Pack (includes empty 20 oz. bottle & universal regulator) |
| WVA-051 | 100 PSI pre-set Gas Flow Regulator. Use with WVA-041 Coiled Hose. Maximum inlet pressure is 3,000 psig |
| WVA-050 | Metal Cart Station. Secures the tester and larger inert gas cylinder on this roll around cart |
| 060-30iw | Calibration Gauge Kit. Calibrate any OEM EVAP-Approved Tester in the field |
