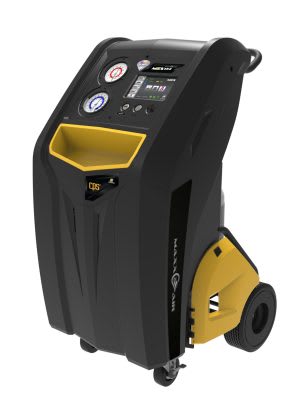

MAXXAIR™ MSX Series | MSX134-H | Hybrid/EV Ready | R-134a
Take your automotive servicing to the next level with MAXXAIR™ MSX134-H, the Hybrid/EV Ready pinnacle of RRR Management Centers. Accelerate recovery time by 30% with its High-Capacity Oilless Compressor, paired with a user-friendly 7” Color Touch-Screen display for peak productivity.
MSX134-H | Hybrid/EV Ready | R-134a
The MSX134-H sets the standard for the next generation of Refrigerant Recovery, Recycling, and Recharge (RRR) Management Centers.
Designed to elevate your workflow with unparalleled efficiency and precision, the MSX134-H is engineered to exceed expectations—now with added compatibility for Hybrid and EV service environments.
Featuring a High-Capacity Oilless Compressor, the MSX134-H accelerates recovery times up to 30% faster than the competition, based on rigorous internal testing.
Navigate operations effortlessly with the intuitive 7” color touch-screen display, delivering a seamless user experience and simplified control.
Experience MSX precision performance and boost productivity with a machine built for the future of automotive service.
Precision performance with increased productivity:
-
- Fully Automatic or User-Selected Manual Processes
- Hybrid/EV Ready
- 7” Color Touch-Screen display
- Wireless network printing
- High-Capacity oilless compressor
- Includes 30lb tank (upgradeable to 50lb)
- Onboard oil injection
- 2-Year Full Coverage Warranty
| Specifications | Details |
|---|---|
| Power | 115V 60Hz |
| Compressor | 2/3 HP twin cylinder oilless |
| Vacuum pump | 2-Stage, 2 CFM, 1/3 HP |
| Gauges | 3.5” Low-side, 30 in/Hg to 250 psi; High-side, 0 to 600 psi |
| Hoses | 10 Ft. (3.0 m), Barrier Type |
| Refrigerant | R-134A |
| Maximum recovery rate | Up to 1 Lb (0.453 kg) per minute |
| Storage tank | 30 Lb. standard, upgradable to 50 Lb. |
| Display | 7” Color Touch-Screen |
| Construction | Heavy-duty Steel Frame Construction |
| Operating temp range | 50°F to 122° (10°C to 50°C) |
| Operating humidity range | 0% to 95% (Non-Condensing) |
| Dimensions | 43.6” x 22.6” x 28.9” |
| Gross weight | 208 lb. (including packaging) |
| Warranty | MAXXAIRTM 2-Year Full Coverage Warranty |
