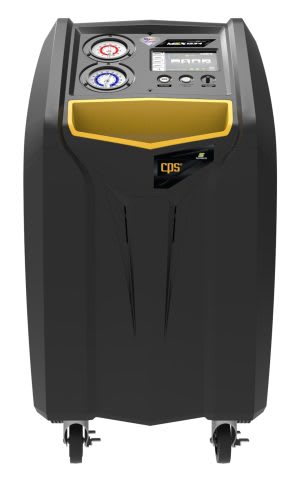

MAXXAIR™ MSX Series | MSX1234 | R-1234yf | Refrigerant Management System
Transform your automotive workflow with MAXXAIR™ MSX1234, the pinnacle of RRR Management Centers. With a High-Capacity Oilless Compressor and intuitive 7” Color Touch-Screen, experience unmatched efficiency and precision performance. Experience automotive servicing redefined with MAXXAIR™ MSX1234, the ultimate
MSX1234 | R-1234yf
Introducing the MSX1234, redefining the standard for Refrigerant Recovery, Recycling, and Recharge (R) Management Centers. Crafted to enhance your workflow with unparalleled efficiency and precision performance, the MSX1234 exceeds expectations. Featuring a High-Capacity Oilless Compressor, it accelerates recovery time by up to 30% faster than competitors, validated by rigorous internal testing. Seamlessly interact with operations via the intuitive 7” Color Touch-Screen display, ensuring effortless usability. Moreover, equipped with a refrigerant identifier and tailored for R-1234yf compatibility, the MSX1234 is the ultimate choice for streamlined refrigerant management. Experience MSX precision performance with increased productivity in the MSX1234.
Precision performance with increased productivity:
-
- Fully Automatic or User-Selected Manual Processes
- 7” Color Touch-Screen Display
- Contains Refrigerant Identifier
- Wireless Network Printing
- Hybrid Ready
- High-Capacity Oilless Compressor
- Includes 30lb Tank (Upgradeable to 50lb)
- 2-Year Full Coverage Warranty
| Specifications | Details |
|---|---|
| Power | 115V 60Hz |
| Compressor | 2/3 HP twin cylinder oilless |
| Vacuum pump | 2-Stage, 2 CFM, 1/3 HP |
| Gauges | 3.5” Low-side, 30 in/Hg to 250 psi; High-side, 0 to 600 psi |
| Hoses | 10 Ft. (3.0 m), Barrier Type |
| Refrigerant | R-1234yf |
| Maximum recovery rate | Up to 1 Lb (0.453 kg) per minute |
| Storage tank | MSX3030, includes 2-30 Lb. tanks), upgradable to 50 Lb. |
| Display | 7” Color Touch-Screen |
| Construction | Heavy-duty Steel Frame Construction |
| Operating temp range | 50°F to 122° (10°C to 50°C) |
| Operating humidity range | 0% to 95% (Non-Condensing) |
| Dimensions | 43.6” x 22.6” x 28.9” |
| Gross weight | 208 lb. (including packaging) |
| Warranty | MAXXAIRTM 2-Year Full Coverage Warranty |
