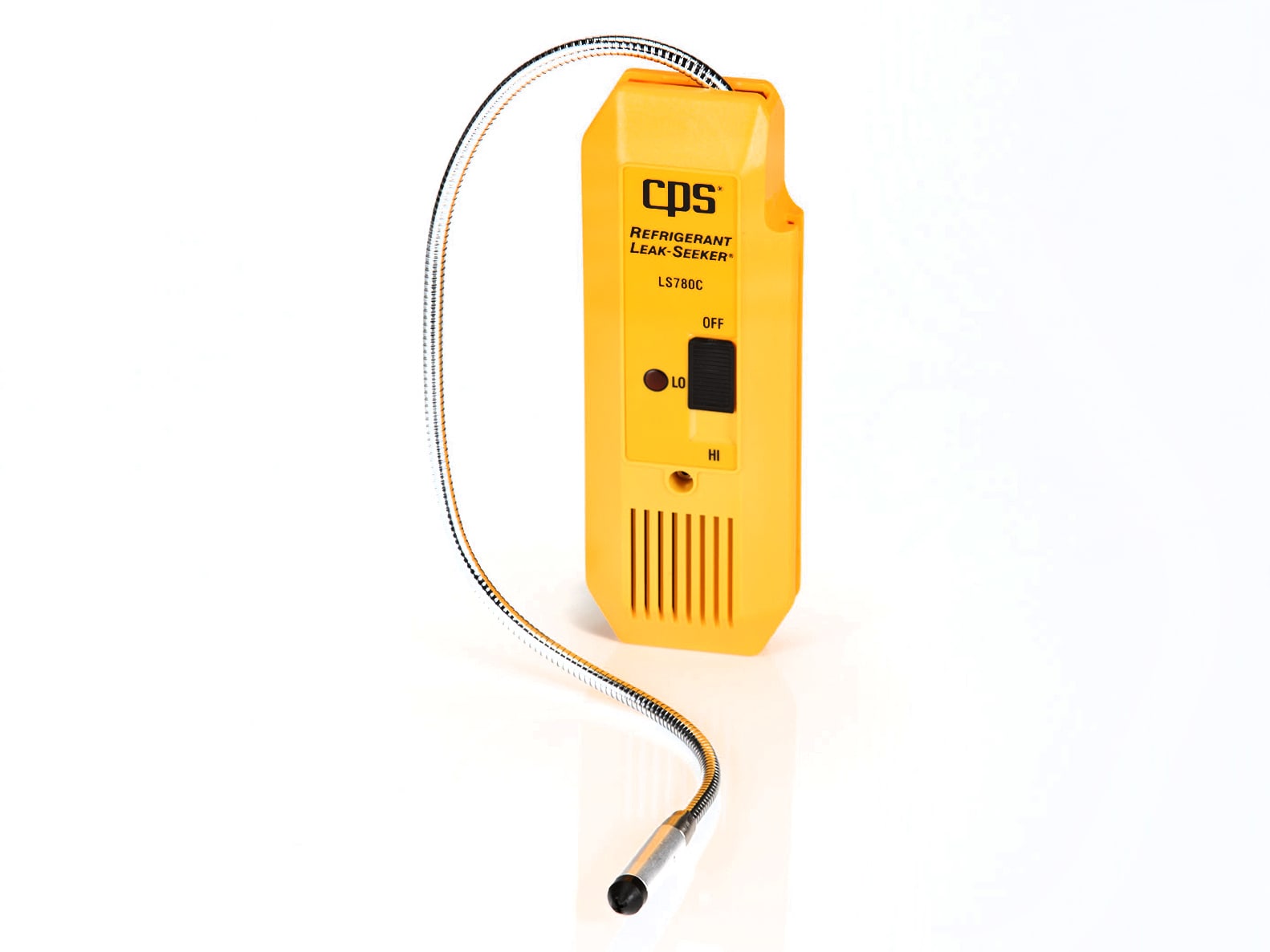

Leak Seeker LS780C | Refrigerant Leak Detector
LEAK-SEEKER® Refrigerant Leak Detector
General Details
Refrigerant Leak Detector LS780C has a rugged, a three-position slide switch used to turn the instrument on & select either LO or HI sensitivity ranges. Visual indication of the leak size is provided by a high intensity LED varying in brightness with the concentration of the refrigerant.
Combines microcomputer circuitry with field-proven Ion-Pump® sensor technology creating a highly sensitive and accurate electronic refrigerant leak detector. 128 computer-generated tones and display alerts the user to varying halogen concentrations. Leak-Seekers are designed and manufactured in USA with U.S. and globally sourced components.
Specifications
| Detector Type | Proprietary Ion-Pump sensor with built-in selective filter housing |
| Sensitivity | Better than 0.25 oz (7g) / year leak rate of HFC |
| Sensitivity Selection | Manual |
| Refrigerant Sensitivity | All, including those with hydrocarbon components (CFC, HCFC, HFC, HFO, NH3, HC) |
| Visual Alarm | High intensity LED |
| (Varies in brightness) | High intensity bar graph display |
| Flex Probe | 18˝ long metal flex probe |
| Operating Temperature | 0 to 140ºF (-18 to 60ºC) |
| Controls | OFF, LO & HI sensitivity modes |
| Power (Battery Life) | (4) AA alkaline batteries (>40 hr continuous use) |
| Weight | 18 oz (500g) |
| Audible Alarms | 128 computer generated tones to precisely guide user to the source of the leak |
| Lock-Out Mode | N/A |
| Low Battery Indication | Center LED above “*” lights during operation |
| Auto-Off | No |
| Sensor Life | Replace seasonally |
| Warranty | 1 year |
Replacement Parts
| LSXSF | Selective Filter Housing |
| LSXBMK | Maintenance Kit: (1) LSXS + (1) LSXSF (replaces LSXMK) |
| LSXS | Ion-Pump Sensor |
| LSXBC | Battery Compartment Cover (Yellow) |
| LSXC | Fabric Carrying Case |
| LSXE | Earphone |
