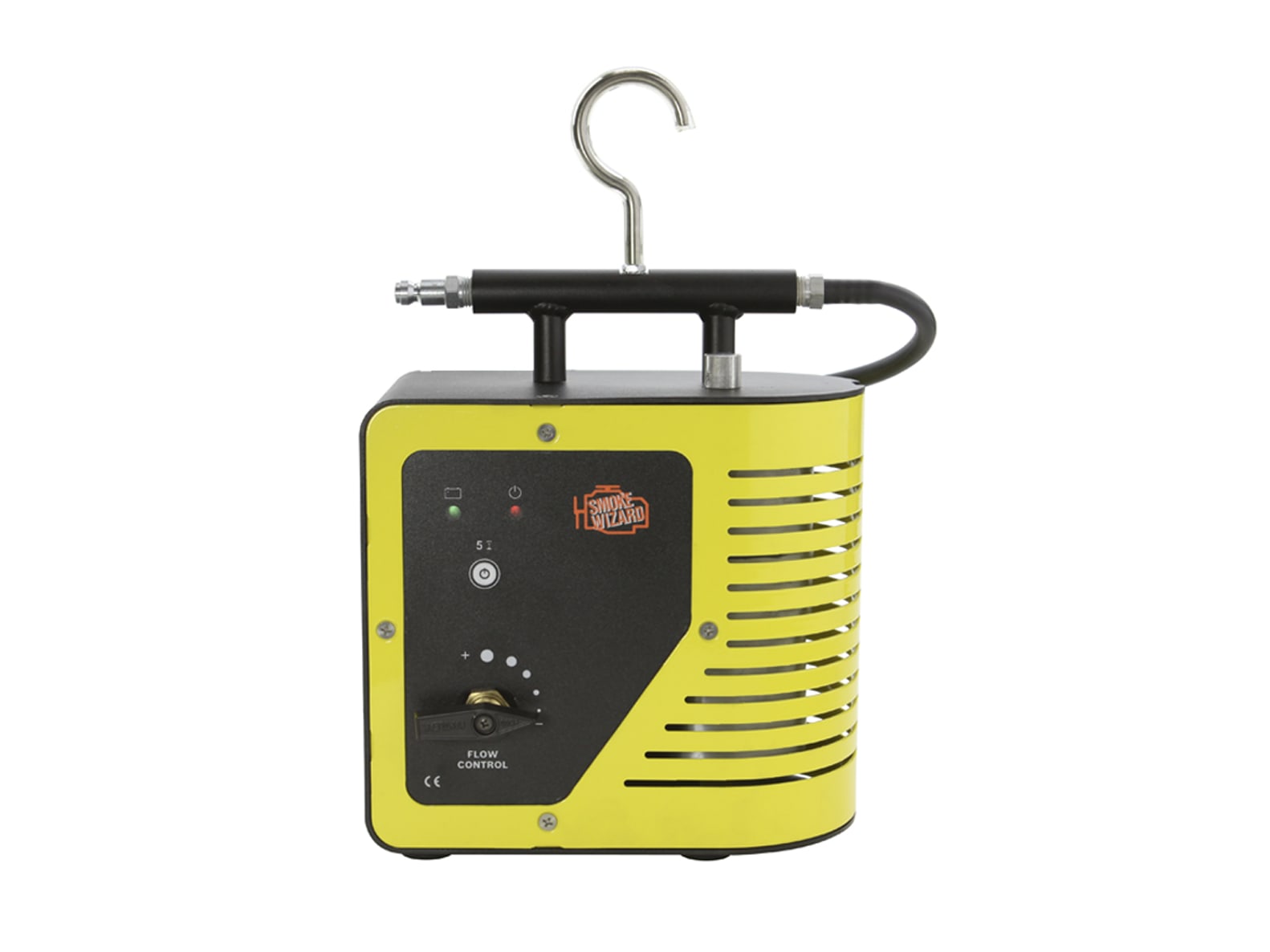

GLD-50 | Smoke Wizard® Diagnostic Smoke® Machine

The Smoke Wizard® GLD-50 is smaller, lighter, and more portable than most any smoke machine on the market. Perfect for when all that's needed is smoke and dye leak detection. Uses automotive system safe, OEM-approved UltraTraceUV®.

SKU: GLD-50 Category:
General Details

Smoke Wizard® Model GLD-50 is smaller, lighter, and more portable than most any smoke machine on the market today.

Smoke test with OEM EVAP Approved UltraTraceUV® dye smoke solution, the smoke that won’t stink!  To find the leak when the smoke is gone or when the leak(s) may be hidden and disassembly is required, use the included Combination Light (on UV selection) to see the dye and pinpoint the exact leak location.

The Smoke Wizard’s internal filter protects its components and the vehicle when using shop air as the pressure source.  Like the GLD-40, this model also comes optimized to use inert gas for safer EVAP testing.

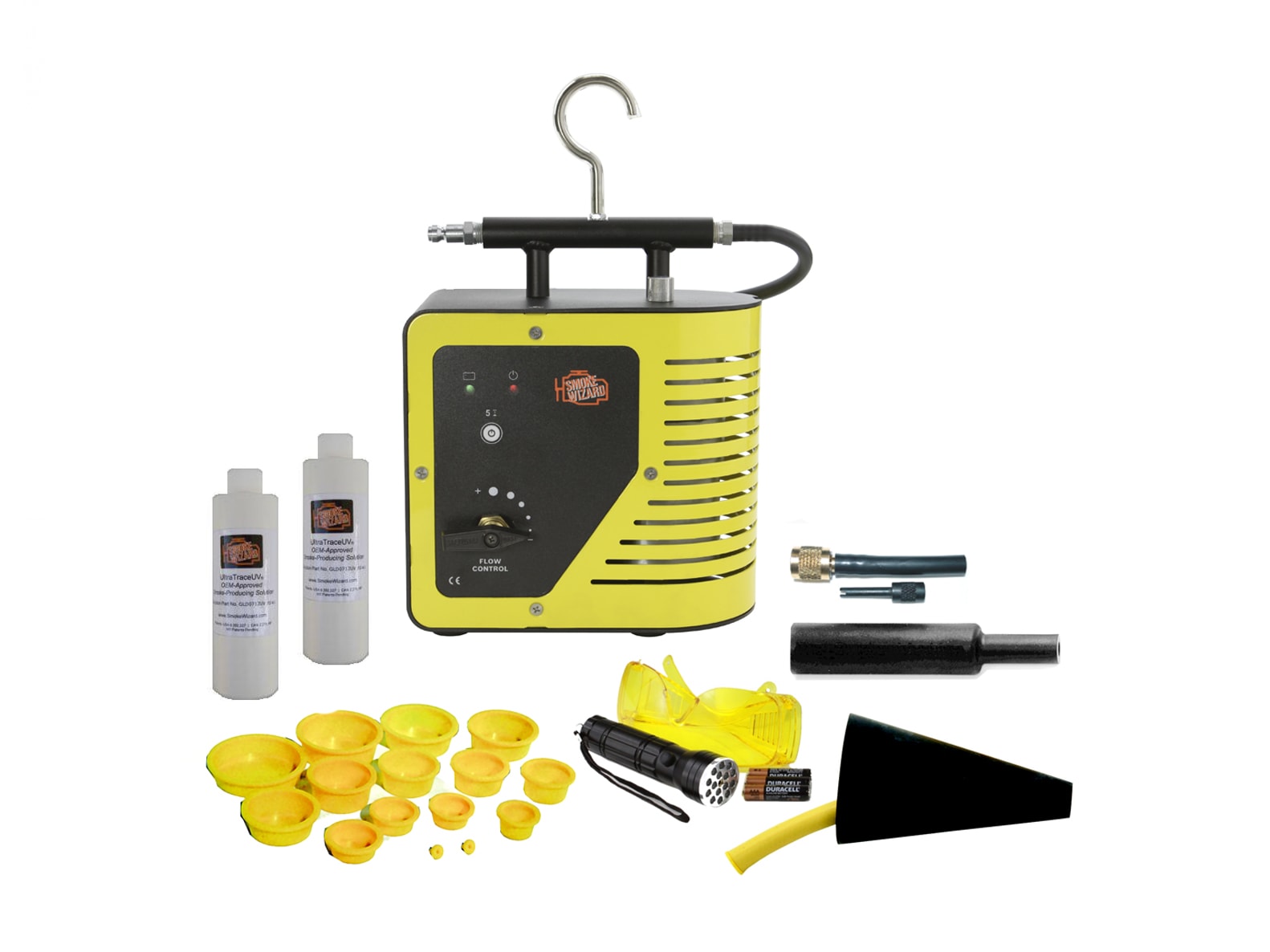

Smoke Wizard® GLD-50 Package includes:

  • Smoke Wizard® GLD-50 Diagnostic Smoke® Machine
  • Operator’s Manual
  • OBD-II Service Port Fitting
  • Schrader Valve Removal Tool
  • Cap Plugs Kit
  • Smoke Diffuser
  • Exhaust Cone Adapter
  • Combination Light (white LED and UV LED in one light w/ batteries & UV Glasses
  • UltraTraceUV® Smoke Producing Solution
  • Leak Detection Innovation
Specifications

Model

GLD-50 Smoke Machine

Input

12 volts DC

Machine Specifications

Height (less hanger)

10 in. (25.4 cm)

Width

5 in. (12.7 cm)

Depth

8.5 in. (22 cm)

Weight

 7 lb. (3.2 kg)

Supply Pressure

13.0 in. H2O (0.032 bar)

Supply Volume

10 liters per minute

Power Supply

15 amps.

Shipping Weight

11 lb. (5 kg)

New Fluid Capacity

8 oz. (236 ml)

Waste Tank Capacity

N/A

Length of Power Cord

10 feet (3m)

Length of Hose

10 feet (3m)

Warranty

One Year
