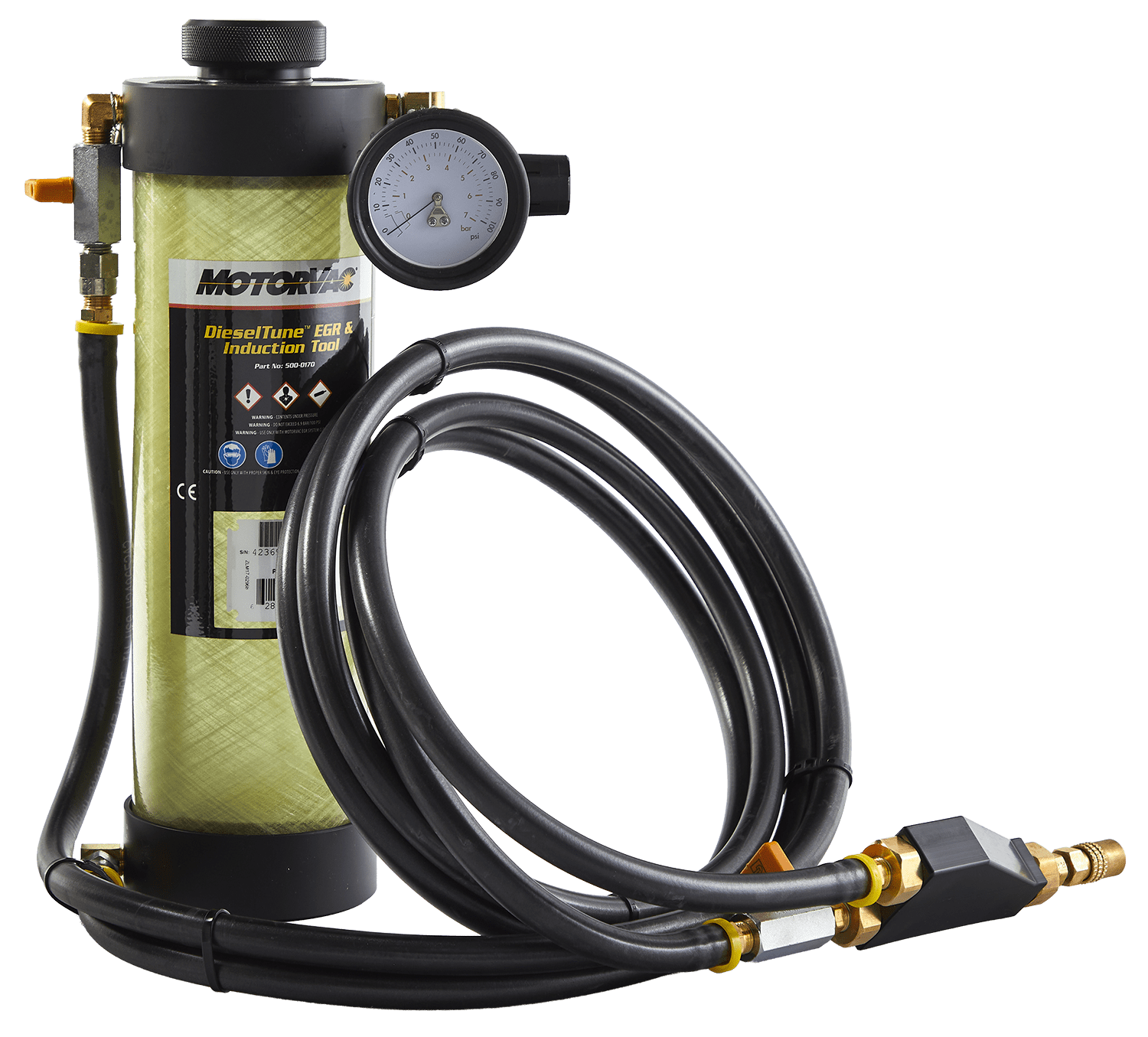

500-0170 | MotorVac DieselTune™ EGR Cleaning Tool

DieselTune™ EGR Cleaning Tool for Diesel EGR System Cleaning on intake and exhaust sides of EGR valve and cooler.

SKU: 500-0170 Category:
General Details
For Diesel EGR System Cleaning machines on the intake and exhaust sides of the EGR valve and cooler.
  • The EGR cleaning machine is designed for on-vehicle cleaning of the EGR circuit
  • Our EGR adapters are field tested and designed to deliver the most effective service
  • Using our Part#400-0280 and special foaming process the service gives immediate results
  • The MotorVac EGR system cleaner is designed for many Diesel EGR systems including Cummins, Ford, GM, VW and more
Specifications:
ModelDieselTune EGR Cleaning Tool
InputN/A
Machine Dimensions
Height40.6 cm (16”)
Width19 cm (7.5”)
Depth19 cm (7.5”)
Carton Dimensions
Height42 cm (16.5”)
Width26.7 cm (10.5”)
Depth29.8 cm (11.75”)
Shipping Weight4.8 kg (10.8 lbs)
New Fluid Capacity2 L (2.1 qt)
Waste Tank CapacityN/A
Length of Power CordN/A
Length of Hose2.4 m (8 ft) and 2.1 m (7 ft)
WarrantyOne Year
Adapters
Part No.DescriptionAvailability
069-3380Ford 6.0LOptional Adapters
069-3381Ford 6.4LOptional Adapters
069-3390Ford 6.7LOptional Adapters
069-3382Duramax CoolerOptional Adapters
069-3384Duramax Turbo BoostOptional Adapters
069-3383Mercedes/JeepOptional Adapters
069-3385Cummins Manual OpenerOptional Adapters
069-3386Cummins 6.7LOptional Adapters
069-3387Isuzu BMWOptional Adapters
069-3398Mercedes 3.0LOptional Adapters
069-3388Mercedes Sprinter 3.0LOptional Adapters
069-3505Mercedes 3.0L (2012-2014) IntakeOptional Adapters
069-3530Mercedes Sprinter 2.1LOptional Adapters
069-3535Mercedes GLK 2.1LOptional Adapters
069-3389S-ToolOptional Adapters
069-3391Audi 3.0L M14 x 1.5Optional Adapters
069-3392M12 x 1.5Optional Adapters
069-3393M10 x 1.25Optional Adapters
069-3394M8 x 1.0Optional Adapters
069-3395Hose Assembly with 1/8 NPT FittingOptional Adapters
069-3396M16 x 1.5Optional Adapters
069-3397M18 x 1.5Optional Adapters
069-3399EGR ManifoldOptional Adapters
069-3502Exhaust (1.75)Optional Adapters
069-3503VW 1.6L IntakeOptional Adapters
069-3504VW Passat 2.0L (2012) IntakeOptional Adapters
069-3519VW 1.9L TDI (2004-2006)Optional Adapters
069-3520VW 2.0L TDI (2009-1013)Optional Adapters
069-3525VW ALH 1.9LOptional Adapters
069-3610Cummins ISC 8.3LHeavy Duty Optional Adapters
069-3615Cummins ISB 07 and 10Heavy Duty Optional Adapters
069-3620Cummins ISX14Heavy Duty Optional Adapters
069-3625Cummins ISX15Heavy Duty Optional Adapters
069-3630Detroit DD13-DD15Heavy Duty Optional Adapters
069-3635Detroit Series 60Heavy Duty Optional Adapters
069-3640Mack MP7-11Heavy Duty Optional Adapters
069-3645MaxxForce 7Heavy Duty Optional Adapters
069-3650MaxxForce 9-13Heavy Duty Optional Adapters
069-3655MaxxForce DT466Heavy Duty Optional Adapters
069-3665Mercedes MBE4000 12.8LHeavy Duty Optional Adapters
069-3675Mercedes MBE900-904 7.2LHeavy Duty Optional Adapters
069-3682Isuzu (GM trucks) 4HK1-TC 5.2LHeavy Duty Optional Adapters
069-3685Volvo D13Heavy Duty Optional Adapters
069-3690Hino - J05D-TF 4.73LHeavy Duty Optional Adapters
